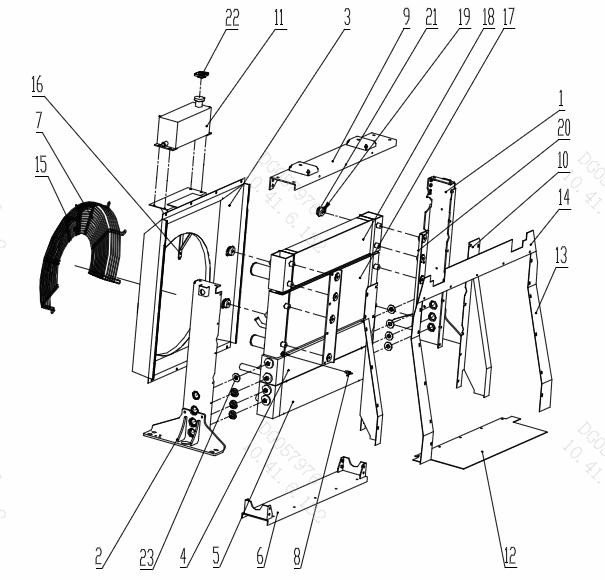

| NO. | PART NO. | PART NAME | QTY |
| 0 | 1456-03E-01000 | Radiator assembly | 1 |
| 1 | 1456-03E-01000-1302100 | Frame-right | 1 |
| 2 | 1456-03E-01000-1302200 | Frame-left | 1 |
| 3 | 1456-03E-01000-1304100 | Shield | 1 |
| 4 | 1456-03E-01000-1301300 | Oil radiator | 1 |
| 5 | 1456-03E-01000-1301400 | Oil radiator | 1 |
| 6 | 1456-03E-01000-1302400 | Frame-below | 1 |
| 7 | 1456-03E-01000-1304210 | Protecting wire net | 1 |
| 8 | FSKG-RC | Water release switch | 1 |
| 9 | 1456-03E-01000-1302300 | Upper frame assembly | 1 |
| 10 | 1456-03E-01000-1306100 | Side bracket | 1 |
| 11 | 1456-03E-01000-1301500 | Water tank | 1 |
| 12 | 1456-03E-01000-1305200 | Down rubber plate | 2 |
| 13 | 1456-03E-01000-1305100 | Side plate | 1 |
| 14 | 1456-03E-01000-1305300 | Upper rubber plate | 1 |
| 15 | 1456-03E-01000-1304220 | Protecting wire net-left | 2 |
| 16 | 1456-03E-01000-1304300 | Piping bracket | 1 |
| 17 | 1456-03E-01000-1301200 | Duct tape water tank | 1 |
| 18 | 1456-03E-01000-1301100 | Core body assembly | 1 |
| 19 | φ50Xφ12X2 | Combined shock | 16 |
| 20 | 1456-03E-01000-1302510 | Rubber plate mounting plate-back | |
| 21 | 1456-03E-01000-1302520 | Rubber plate mounting plate | |
| 22 | JBT 2292 | Cover | |
| 23 | YDφ55T | Shock |
