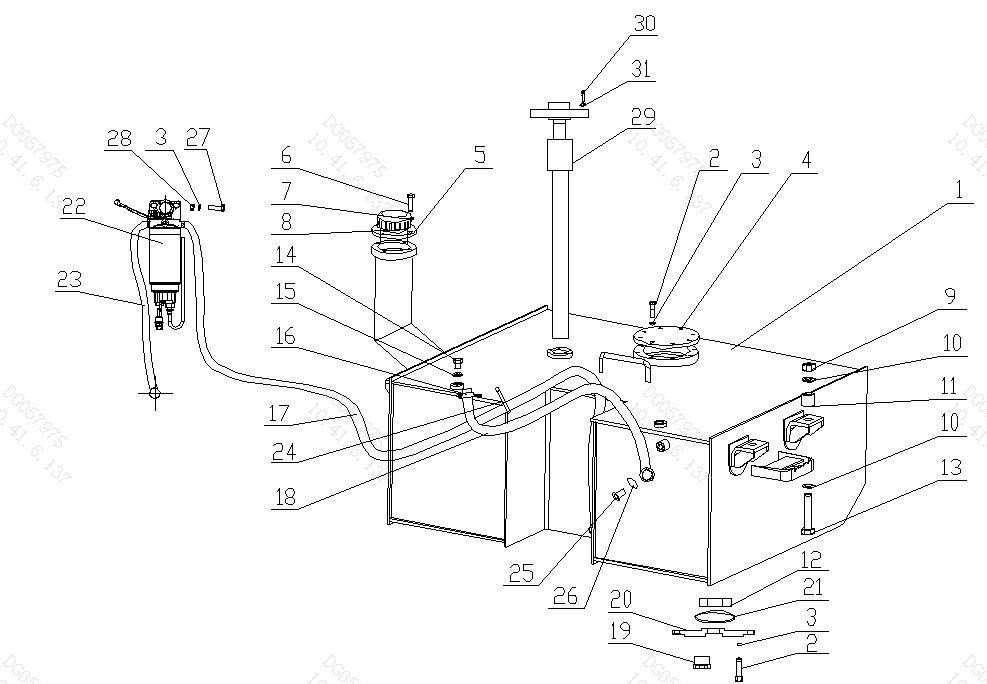

STR L58 Fuel Oil Tank And Piping

NO.	PART NO.	PART NAME	QTY
0	1456-04E-A0000	Fuel tank and piping	1
1	1456-04E-01000	Fuel tank case	1
2	GB5783-M10X25	Bolt	12
3	GB93-10	Washer	14
4	1455-04-00005	Cover	1
5	1455-04-02000	Screen gp-refueling	1
6	GB5783-M8X16	Bolt	4
7	GB97.1-8	Washer	4
8	GB93-8	Washer	4
9	GB6170-M20	Nut	4
10	GB97.1-20	Washer	8
11	1457-04-00006	Spacer sleeve	4
12	1455-60-00002	Magnet	1
13	GB5782-M20X80	Bolt	4
14	JB1000-M20X1.5	Screw plug	2
15	07303-02028	Washer	2
16	JB3618.1-24-28	Collar	1
17	1456-04E-00003	Oil inlet pipe	1
18	1456-04E-00001	Tubing	1
19	03212-00270	Block	1
20	1456-04B-00003	Flange	1
21	GB1235-140X3.1	O-ring	2
22	1457-04-03000	Fuel system protector	1
23	1456-04E-00002	Engine oil inlet pipe	1
24	08043-04806	Clip	5
25	1455-04-00004	Link bolt	2
26	07303-01420	Sealing ring	4
27	GB5783-M10X50	Bolt	4
28	GB97.1-10	Washer	4
29	F2330-32501	Sensor	1
30	GB818-M5X14	Bolt	5
31	GB93-5	Washer	5
