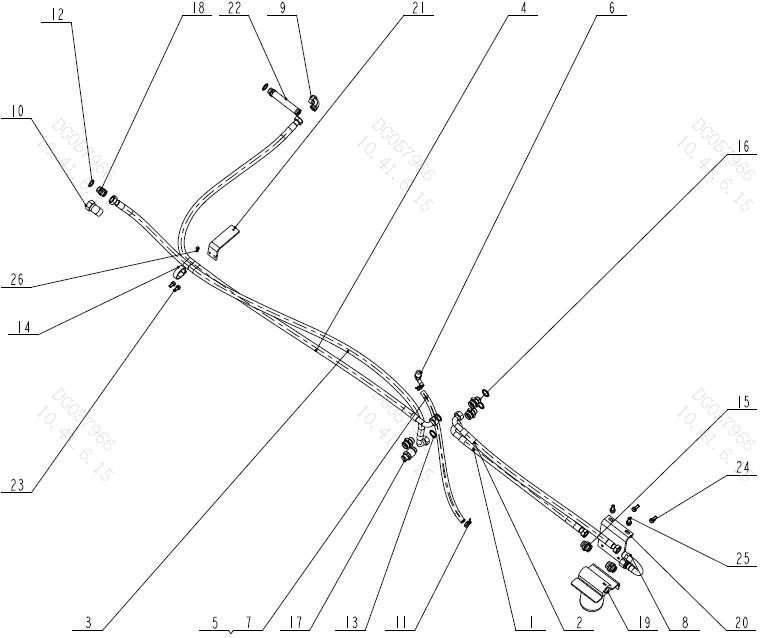

STR L58 Shift Piping Assembly

NO.	PART NO.	PART NAME	QTY
1	03012-13770812	Hose assembly	1
2	03012-13771002	Hose assembly	1
3	03012-13772102	Hose assembly	1
4	03012-13772702	Hose assembly	1
5	1455-75-03000	Hose	1
6	1455-75-04000	Joint	1
7	1456-75B-00001	Spring sheath	1
8	1457-75-01000	Filter steel tube	1
9	03201-01220	Joint	1
10	03221-01220	Joint	1
11	07280-02323	Clip	2
12	07303-02735	Sealing ring	2
13	07303-03038	Sealing ring	2
14	08043-05508	Casing clamp	1
15	1455-75-00001	Joint	2
16	1455-75-00002	Joint	3
17	1455-75-00003	Long joint	1
18	1455-75-00004	Oil-in joint	1
19	1455-75-06000	Oil filter	1
20	1455-75T-00001	Bracket	1
21	1455-75Y-00001	Bracket	1
22	1456-75E-00001	Oil-in joint	1
23	GB16674.1-M10x20	Bolt	2
24	GB16674.1-M10x25	Bolt	2
25	GB16674.1-M12x30	Bolt	2
26	GB16674.1-M6x16	Bolt	1
