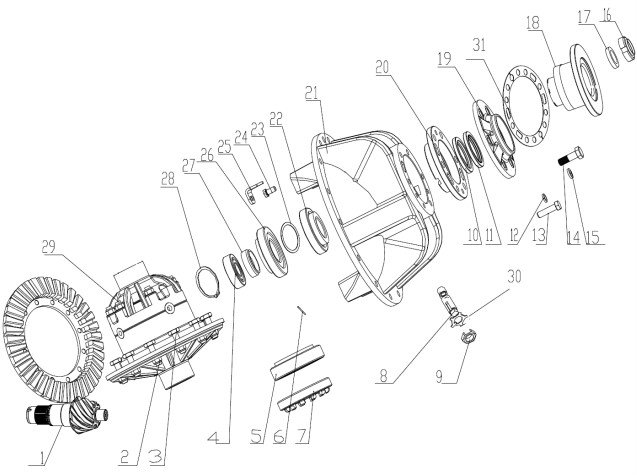

| NO. | PART NO. | PART NAME | QTY |
| 0 | 92000254 | Carrier assy.(front axle) | 1 |
| 82311600 | Carrier assy.(rear axle) | 1 | |
| 1 | 92120065 | Spur Pinion Set(front axle) | 1 |
| 75202362 | Spur Pinion Set(rear axle) | 1 | |
| 2 | 75501992 | Nut | 12 |
| 3 | 75500003 | Bolt | 12 |
| 4 | 54500006 | Bearing | 1 |
| 5 | 54500003 | Bearing | 2 |
| 6 | 56000005 | Thread of iron | 2 |
| 7 | 75200118 | Adjusting Nut | 2 |
| 8 | 79600094 | Bolt | 1 |
| 8.1 | 79600096 | Copper Copy | 1 |
| 8.2 | 79600095 | Bolt | 1 |
| 9 | 51070004 | Nut | 1 |
| 10 | 53500007 | Oil Seal | 1 |
| 11 | 53500008 | Oil Seal | 1 |
| 12 | 52020004 | Washer | 1 |
| 13 | 82788501 | Bolt | 1 |
| 14 | 82788502 | Bolt | 7 |
| 15 | 52020005 | Washer | 1 |
| 16 | 75500269 | Lock Nut | 1 |
| 17 | 75500231 | Washer | 1 |
| 18 | 82310501 | Flange Assembly | 1 |
| 19 | 75201770 | Cover | 1 |
| 20 | 75201767 | Bearing Cage | 1 |
| 21 | 92140020 | Carrier Housing(front axle) | 1 |
| 79800027 | Carrier Housing(rear axle) | 1 | |
| 22 | 54100015 | Bearing | 1 |
| 23 | 79605013 | Adjusting Shims | 1 |
| 24 | 50004003 | Bolt | 2 |
| 25 | 75200054 | Lock Shim | 2 |
| 26 | 54100014 | Bearing | 1 |
| 27 | 79605010 | Bearing Spacers | 1 |
| 28 | 52100012 | Snap Ring | 1 |
| 29 | 92150067 | Diff. Assembly(front axle) | 1 |
| 92150048 | Diff. Assembly(rear axle) | 1 | |
| 30 | 79600097 | Lock Shim | 1 |
| 31 | 79605001 | Adjusting Shims | 1 |
