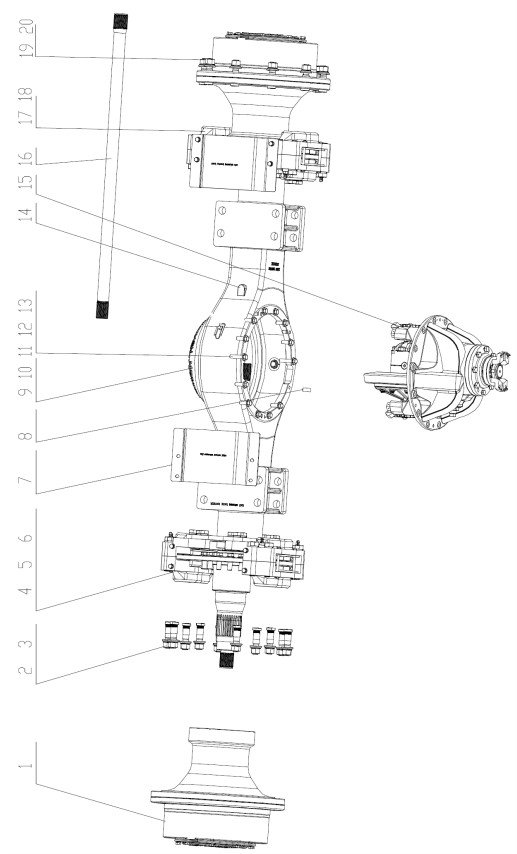

STR L58 Axle Assembly

NO.	PART NO.	PART NAME	QTY
1	93000021	Planetary assy.	2
2	75502324	Rim bolt(F)	12
	75502318	Rim bolt(R)	12
3	80041003	Rim nut(F)	12
	80041001	Rim nut(R)	12
4	50009011	Bolt	8
5	52000002	Washer	8
6	52020003	Washer	8
7	94200088	Dust cover	2
8	51270005	Pin	3
9	53200005	Compound seal gasket	2
10	75500197	Plug	2
11	80788006	Bolt	10
12	80788007	Bolt	2
13	80788005	Bolt	2
14	56100001	Plug	2
15	92000254	Carrier assy.(F)	1
	82311600	Carrier assy.(R)	1
16	90110067	Axle shaft(F)	2
	79000142	Axle shaft(R)	2
17	94000035	Brake assy.	2
18	91001012	Housing assy. (F)	1
	91000798	Housing assy. (R)	1
19	75502318	Rim bolt(F)	12
	75502324	Rim bolt®	12
20	80041001	Rim nut(F)	12
	80041003	Rim nut(R)	12
