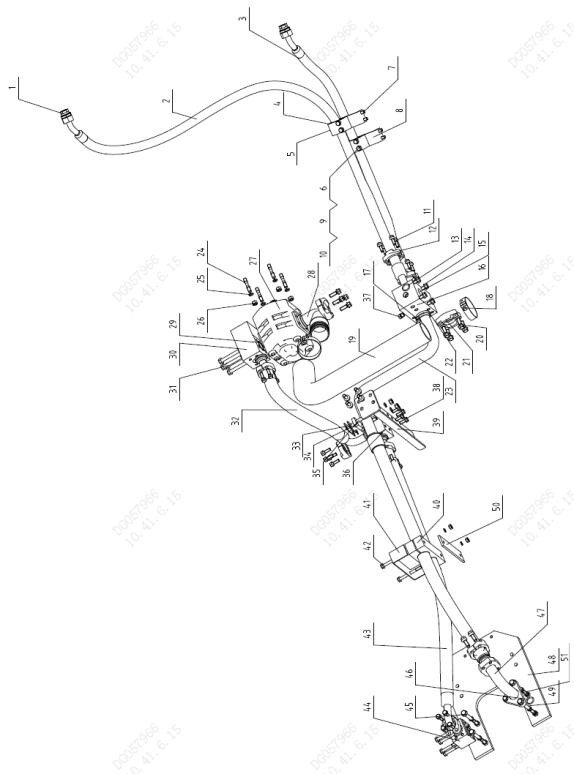

STR L58 Multiple Unit Valve Work Pump Piping

NO.	PART NO.	PART NAME	QTY
1	1455-62-00008	Oil in-let joint of radiator	2
2	03014-A2583250	Hose	1
3	03014-A2582400	Hose	1
4	1457-76-00002	Rubber pad	4
5	1457-76-00001	Bolt	2
6	GB16674.1-M10X80	Bolt	4
7	GB16674.1-M10X20	Bolt	4
8	1457-76-00005	Bracket	1
9	GB93-10	Spring washer	4
10	GB6170-M10	Nut	4
11	GB16674.1-M10X30	Bolt	24
12	07371-31255	Flange	12
13	07010-24038	O-ring	8
14	GB16674.1-M12X25	Bolt	10
15	07010-24066	O-ring	1
16	1455-62V-01000	Return valve block	1
17	03212-00160	Plug	1
18	07280-09832	Pipe clamp	4
19	1455-62P-00008	Hose	1
20	GB16674.1-M12X35	Bolt	14
21	07371-31465	Flange	6
22	07010-24047	O-ring	3
23	1456-62E-03000	Hose	1
24	GB898-AM12X40	Double-screw bolt	2
25	GB93-12	Spring washer	8
26	GB6170-M12	Nut	8
27	1455-62Y-01000	Gear pump	1
28	1455-76P-05000	Oil suction pipe of pump	1
29	07010-24038	O-ring	18
30	1455-62V-00002	Oil production block	1
31	GB16674.1-M10X90	Bolt	4
32	03031-5AC550700	Hose	1
33	1455-62V-00011	Adjusting pad	2
34	1455-62V-00010	Adjusting pad	2
35	1455-62V-00012	U-Bolt	1
36	1455-62V-00001	Confluence block	1
37	03212-00140	Plug	2
38	GB16674.1-M10X20	Bolt	4
39	1455-62V-06000	Bracket	1
40	1457-62-00005	Rubber pad	2
41	1457-62-00004	Clip	1
42	GB16674.1-M10X100	Bolt	2
43	03031-5AC551400	Hose	1
44	1455-62V-00006	Multi way valve oil inlet block	1
45	GB16674.1-M12X130	Bolt	2
46	07000-12045	O-ring	1
47	1455-62V-09000	Tubing welding	1
48	1455-62V-00009	Plate	1
	1455-62-00012	Plate	1
49	GB16674.1-M12X150	Bolt	2
50	1457-62-00003	Bracket	1
51	1455-62V-10000	Tubing welding	1
