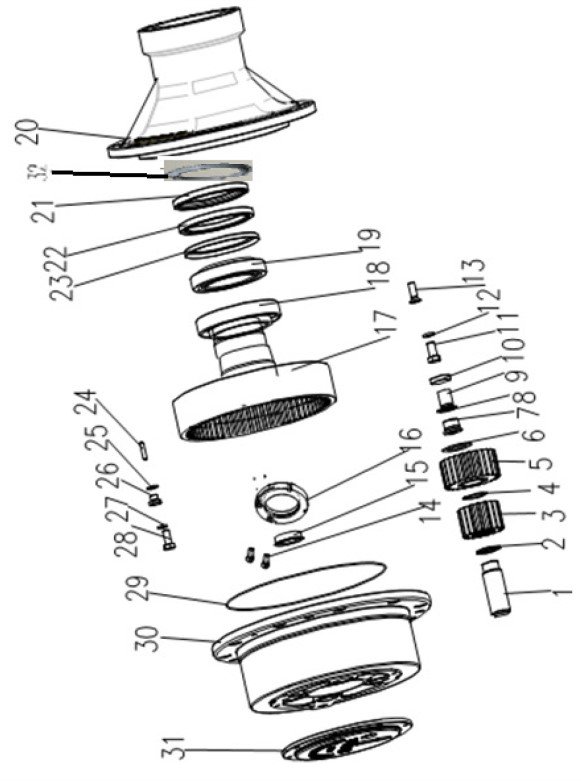

| NO. | PART NO. | PART NAME | QTY |
| 0 | 93000021 | Planetary assy. | 1 |
| 1 | 79001545 | Planet Pin | 4 |
| 2 | 75600334 | Sleeve | 4 |
| 3 | 83000802 | Sun Gear | 1 |
| 4 | 52100009 | Circlip | 1 |
| 5 | 83000801 | 4 | |
| 6 | 75600457 | Planet Gear | 8 |
| 7 | 75500197 | Planet Gear Shim | 1 |
| 8 | 53200005 | Plug | 1 |
| 9 | 79605020 | Compound Seal | 1set |
| 10 | 73520042 | Adjustment Pin | 1 |
| 11 | 50012010 | Limit Block | 7 |
| 12 | 52020004 | Bolt | 7 |
| 13 | 50140003 | Washer | 3 |
| 14 | 83810304 | Screw | 2 |
| 15 | 77000021 | Fixing Bolt | 1 |
| 16 | 83899301 | Sleeve | 1 |
| 17 | 83640302 | Nut | 1 |
| 18 | 54100007 | Ring Hub Assembly Bearing | 1 |
| 19 | 54100006 | Bearing | 1 |
| 20 | D3639301 | Hub | 1 |
| 21 | 53510005 | Oil Seal | 1 |
| 22 | 93200126 | Oil Guard Plate | 1 |
| 23 | 93200124 | Circlip | 1 |
| 24 | 75600330 | Needle Roller | 216 |
| 25 | 75500842 | Plug | 1 |
| 26 | 53200002 | Compound Seal Washer | 1 |
| 27 | 52020003 | Washer | 1 |
| 28 | 50012005 | Bolt | 1 |
| 29 | 83000810 | Gasket Ring | 1 |
| 30 | 83310601 | Spider | 1 |
| 31 | 83688301 | Cover | 1 |
| 32 | 53100006 | Oil Seal | 1 |
