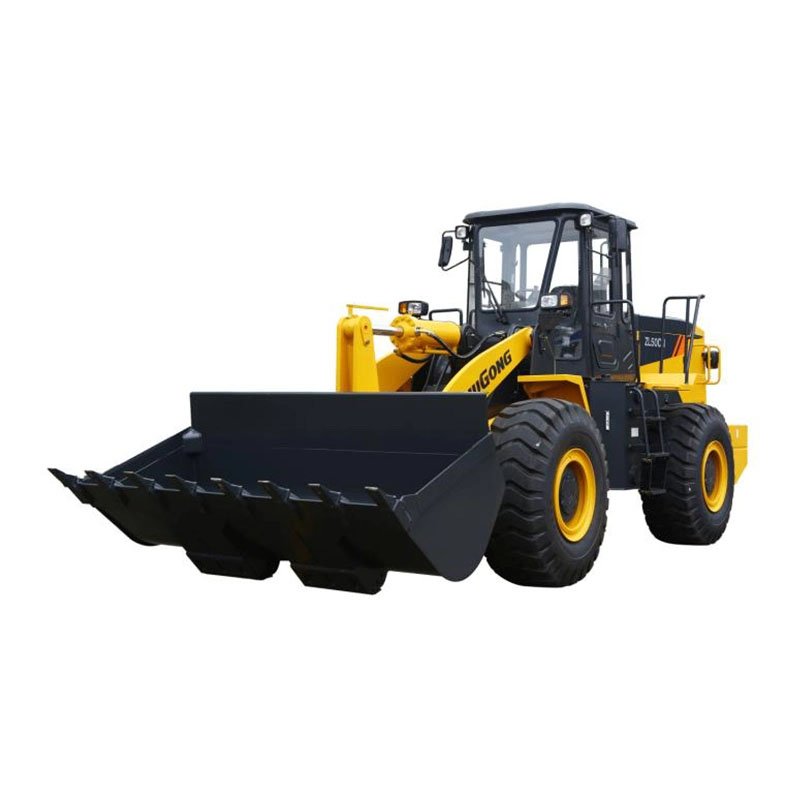

Specifications ZL50CN-ZL50CN
Operating weight 16500-17300 kg
Standard bucket 3 m³
Gross power 162 kW (220 hp) @ 2200 rpm
Net power 148 kW (201 hp) @ 2200 rpm
Rated load 5000 kg
Total cycle time 11.5 s
Tipping load-full turn 11000 kg
Bucket breakout force 167 kN
Dump clearance, full height discharge 2970 mm
Dump reach, full height discharge 1200 mm
Model 6LT9.3
Emissions: EPA Tier 2 / EU Stage II
Cooling system: Charge air cooling
Length with bucket down: 7598 mm
Width over tires: 2976 mm
Cab height: 3480 mm
Turning radius, outside of tire: 6647 mm
Bucket capacity: 1.8-5.6 m³
General Purpose: 3 m³
Light material: 3.0, 4.5, 5.0, 5.6 m³
Heavy-rock: 2.7 m³
