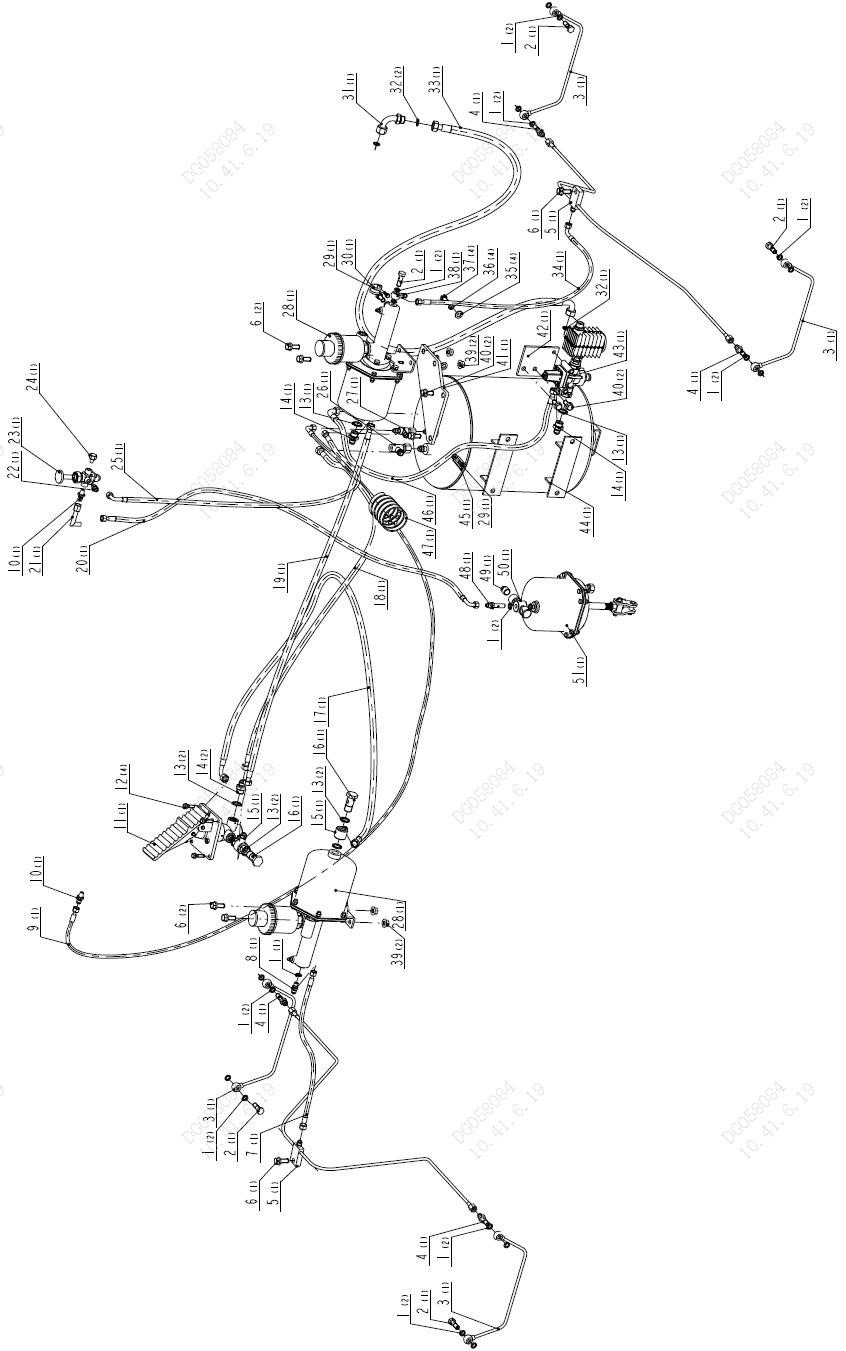

STR L58 Brake System2

NO.	PART NO.	PART NAME	QTY
1	07303-01218	Combined washer	21
2	1455-77-00007	Articulation bolt	5
3	1455-77-14000	Brake steel tube	4
4	1455-77-00008	Articulation bolt	4
5	1455-77-15000	Brake steel tube	2
6	GB16674.1-M12X30	Bolt	6
7	03040-257001000	Pipe,front axle brake	1
8	1455-77-00001	Joint	1
9	03040-057002800	Air pipe	1
10	1455-77-00009	Joint	2
11	1455-77-37000	Air brake valve	1
12	GB16674.1-M8X30	Bolt	2
13	07303-02230	Combined washer	8
14	1455-77-00002	Joint	4
15	1455-77-07000	Joint	2
16	1455-77-00005	Articulation bolt	2
17	03040-157101800	Air pipe	1
18	03040-155101550	Air inlet pipe	1
19	03040-155101550	Air pipe	1
20	03040-057001500	Air pipe	1
21	1455-77-04000	Joint	1
22	1455-77-00004	Joint	1
23	1455-77-03000	Hand control brake valve	1
24	1455-77-00003	Hand operated valve plug	1
25	03040-057001400	Air pipe	1
26	1455-77-22000	Joint	1
27	1455-77-16000	Air boosting pump	2
28	1456-77B-04000	Tee joint	1
29	GB16674.1-M6X16	Bolt	2
30	08043-02406	Hoop	1
31	1456-77B-01000	Joint	1
32	07303-01420	Combined washer	3
33	1452-77-01000	Air outlet pipe	1
34	03040-257001130	Rear axle brake hose	1
35	GB97.1-12	Washer	4
36	GB93-12	Spring washer	4
37	GB5783-M12X25	Bolt	4
38	1434-77-01000	Joint	1
39	GB6177.1-M12	Nut	4
40	GB6174.1-M12X25	Bolt	4
41	1455-77-00014	Board	1
42	1456-77B-00002	Board	1
43	1456-77B-07000	Combined valve	1
44	1457-77-13000	Air reservoir assembly	1
45	08043-03206	Hoop	1
46	03040-157101130	ir pipe	1
47	1455-07-00016	Insulating rubber sheath	1
48	1455-77-00006	Air pipe	1
49	07042-70415	Plug the R1/2	1
50	1456-77B-05000	Joint	1
51	1455-77-12000	Parking brake chamber	1
