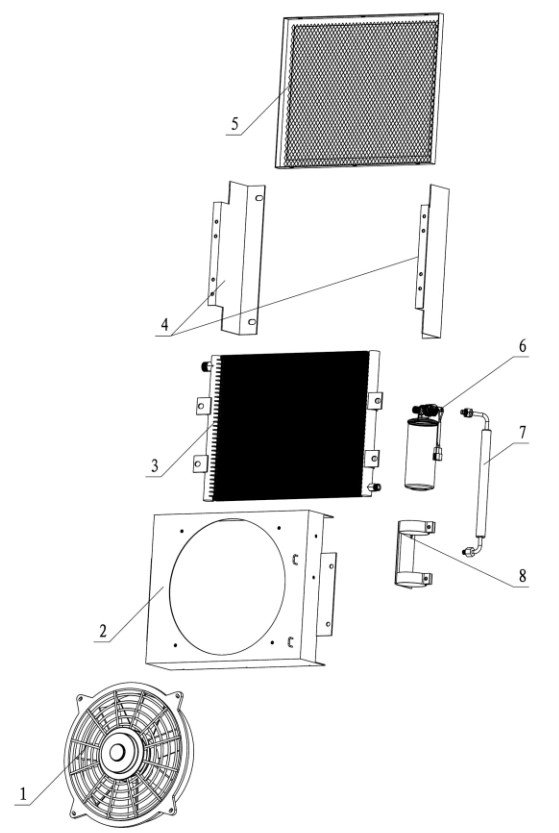

| NO. | PART NO. | PART NAME | QTY |
| 0 | 1434-58-03000 | Condenser assembly | 1 |
| 1 | GKL33-5.0G-40 | Condenser fan | 1 |
| 2 | GKL41-5.0B-10 | Condenser shell | 1 |
| 3 | GKL56-5.0A-10 | Condenser core | 1 |
| 4 | GKL56-5.0-10 | Condenser bracket | 2 |
| 5 | GKL41-5.0B-30 | Condenser protection network | 1 |
| 6 | T1902-00 | Reservoir | 1 |
| 7 | GKL56-5.0-20 | Condenser to reservoir hose | 1 |
| 8 | GKL56-5.0-30 | Reservoir support | 1 |
