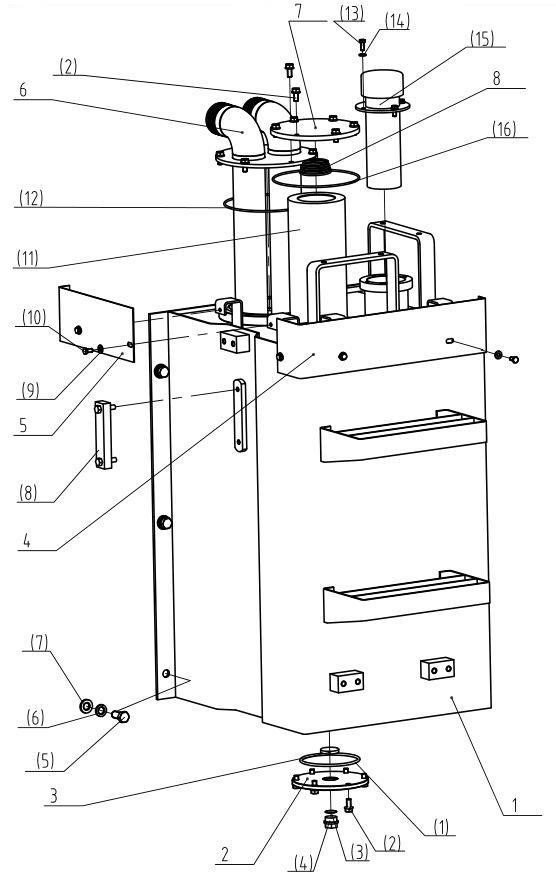

STR L58STR L58 Hydraulic Tank Assembly
| NO. |
PART NO. |
PART NAME |
QTY |
| 0 |
1456-60E-A0000 |
Engine tank assy. |
1 |
| 1 |
1456-60E-01000 |
Tank body |
1 |
| 2 |
1455-60-00001 |
Flange |
1 |
| 3 |
1455-60-00002 |
Magnet |
1 |
| 4 |
1455-60P-00001 |
Baffle.1 |
1 |
| 5 |
1455-60P-00002 |
Baffle.2 |
1 |
| 6 |
1462-60E-04000 |
Oil suction pipe |
1 |
| 7 |
1462-60E-00001 |
Screen assy |
1 |
| 8 |
1455-60-02002 |
Spring |
1 |
| -1 |
GB1235-140X3.1 |
O-ring |
1 |
| -2 |
GB5787-M8X20 |
Bolt |
18 |
| -3 |
JB1000-M27X2 |
Plug screw |
1 |
| -4 |
07303-02735 |
Sealing ring |
1 |
| -5 |
GB5783-M16X35 |
Bolt |
6 |
| -6 |
GB93-16 |
Spring washer |
6 |
| -7 |
GB97.1-16 |
Washer |
6 |
| -8 |
1455-04-04000 |
Level indicator |
1 |
| -9 |
GB5783-M8X16 |
Bolt |
5 |
| -10 |
GB97.1-8 |
Washer |
5 |
| -11 |
1462-60E-03000 |
Return filter |
1 |
| -12 |
07009-13200 |
O-ring |
1 |
| -13 |
GB5783-M8X20 |
Bolt |
4 |
| -14 |
GB93-8 |
Spring washer |
4 |
| -15 |
1455-60-06000 |
Oil filling screen assy |
1 |
| -16 |
07009-13200 |
O-ring |
1 |
