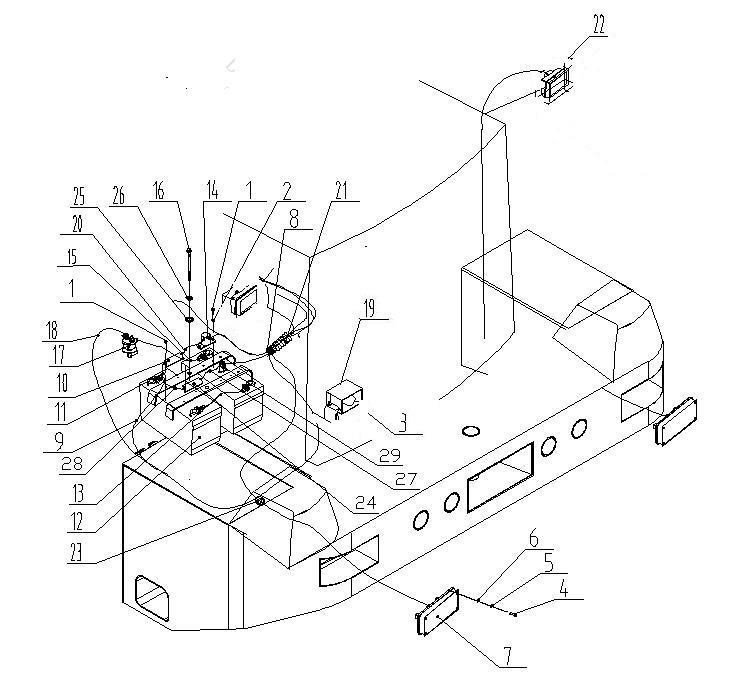

STR L58 Battery Wiring

NO.	PART NO.	PART NAME	QTY
1	GB818-M5X10	Screw bolt	8
2	GB93-5	Spring washer	8
3	F2730-11000	Back up buzzer	1
4	GB823-M5X30	Screw bolt	8
5	GB93-5	Spring washer	8
6	GB97.1-5	Washer	8
7	D2443-03700	Sanyu rear lamp	2
8	1455-07-00017	Insulating sleeve	2
9	1457-07-08000	Wire	1
10	D2763-08000	Fuse box	1
11	1455-07-09000	Wire	1
12	D1011-12011	Battery assembly	2
13	1457-07-14000	Wire	1
14	D2601-10000	Power switch	1
15	1457-07-07000	Battery earth wire	1
16	GB5782-M10X250	Bolt	2
17	D2602-20010	Mannual power switch	1
18	1457-07F-05000	Earth wire	1
19	GB16674.1-M8X12	Bolt	2
20	1455-07-07000	Wire	1
21	1455-07-00016	Protective sleeve	2
22	D2401-02410	Rear working lamp	2
23	1455-07-00014	Insulating sleeve	2
24	D2763-15000	Fuse box	1
25	GB97.1-10	Washer	2
26	GB93-10	Spring washer	2
27	1457-07-12000	Wire	1
28	1457-07-13000	Wire	1
29	D2611-10020	Warm up relay	1
