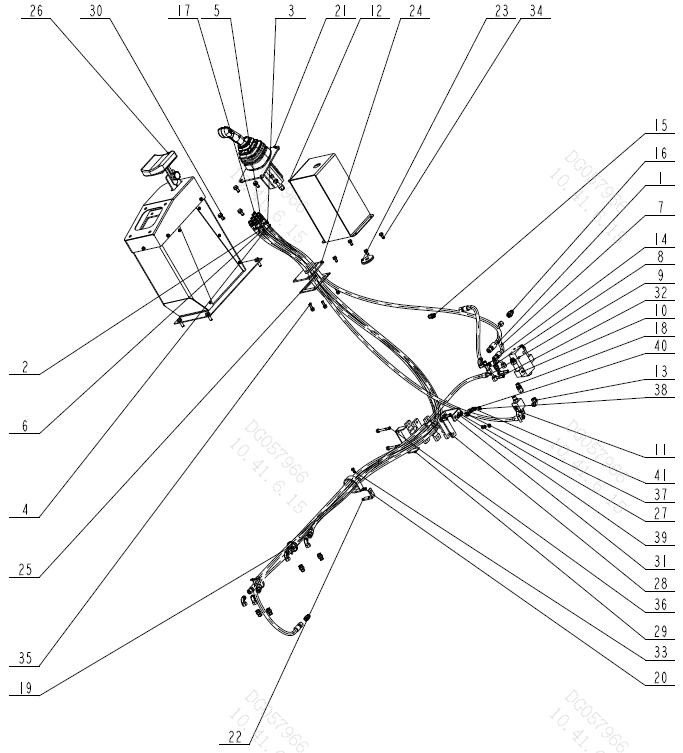

STR L58 Pilot Control Piping

NO.	PART NO.	PART NAME	QTY
1	03004-11331600	Hose assembly	1
2	03004-11332000	Hose assembly	1
3	03004-11332650	Hose assembly	1
4	03004-11332700	Hose assembly	1
5	03004-11333050	Hose assembly	1
6	03004-13333100	Hose assembly	1
7	03004-12330300	Hose assembly	1
8	03004-13330630	Hose assembly	1
9	03004-13332600	Hose assembly	1
10	1434-26G-04000	Select valve	1
11	1455-26V-02000	Ball valve	1
12	1456-26E-01000	Bracket	1
13	03201-01100	EW-Joint	6
14	03203-01100	EL-Joint	1
15	03206-01330	Joint	12
16	03206-01340	Joint	1
17	03206-01350	Joint	1
18	03210-01330	Joint	1
19	08034-40820	Cable Tie	2
20	08043-04806	Clamp	1
21	1455-26-01000	Pilot valve	1
22	1455-26V-00003	Bracket	1
23	1455-58-00020	Rubber plug	1
24	1457-26C-00001	Seal	1
25	1457-26C-00002	Seal	2
26	1457-26C-04000	Box	1
27	1457-86F-00001	Rubber block	1
28	1472-86-00002	Rubber block	4
29	1472-86-00004	Guard plate	1
30	GB16674.1-M10X20	Bolt	4
31	GB16674.1-M10X30	Bolt	2
32	GB16674.1 M10x50	Bolt	2
33	GB16674.1-M6X12	Bolt	1
34	GB16674.1-M8X16	Bolt	4
35	GB16674.1-M8X25	Bolt	4
36	GB16674.1-M8X70	Bolt	2
37	GB6170-M10	Nut	2
38	GB6170-M8	Nut	2
39	GB93-10	Spring washer	2
40	GB93-8	Spring washer	2
41	GB97.1-8	Washer	2
